R2-DT

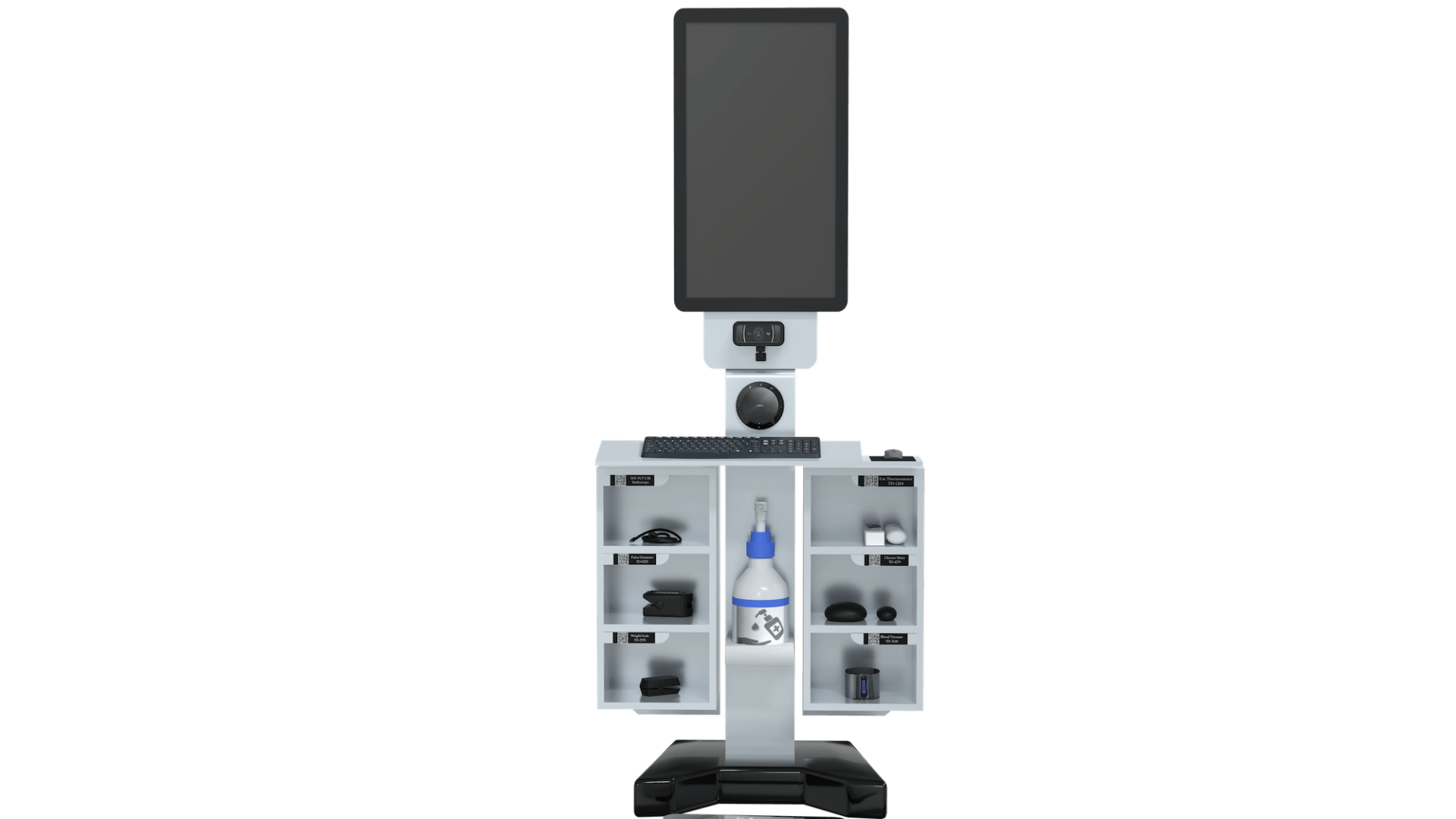

Smart Telehealth Kiosk

On Wheels











Now Shipping Worldwide

Operates In 10 Languages


A telehealth kiosk in any community

On-demand healthcare consults from a physical point of care


Inspired by R2-D2 from the Star Wars trilogy, our custom built R2-DT is ideal for flexible communities:


  • workplaces
  • family homes
  • senior housing
  • residential
  • schools
  • hotels


It can be placed in any dedicated room, outdoors and moved around on wheels. Every kiosk comes with a subscription plan and connects communities to a 24/7 network of urgent care doctors.


R2-DT connects communities worldwide. Powered by DoctorTouch software, it's accessible in 10 languages:


  • English
  • Chinese
  • Espanyol
  • Arabic
  • French
  • Bahasa Malaysia
  • Indonesian
  • Dutch
  • and more


Available for ODM and private label.

Enhancing The Visual Experience

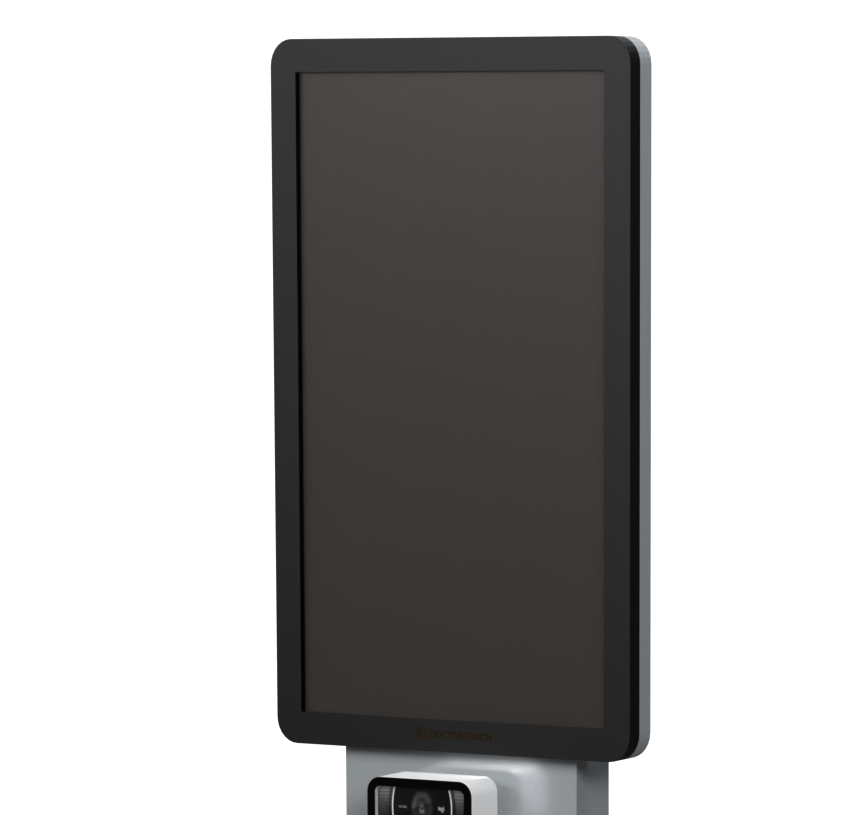

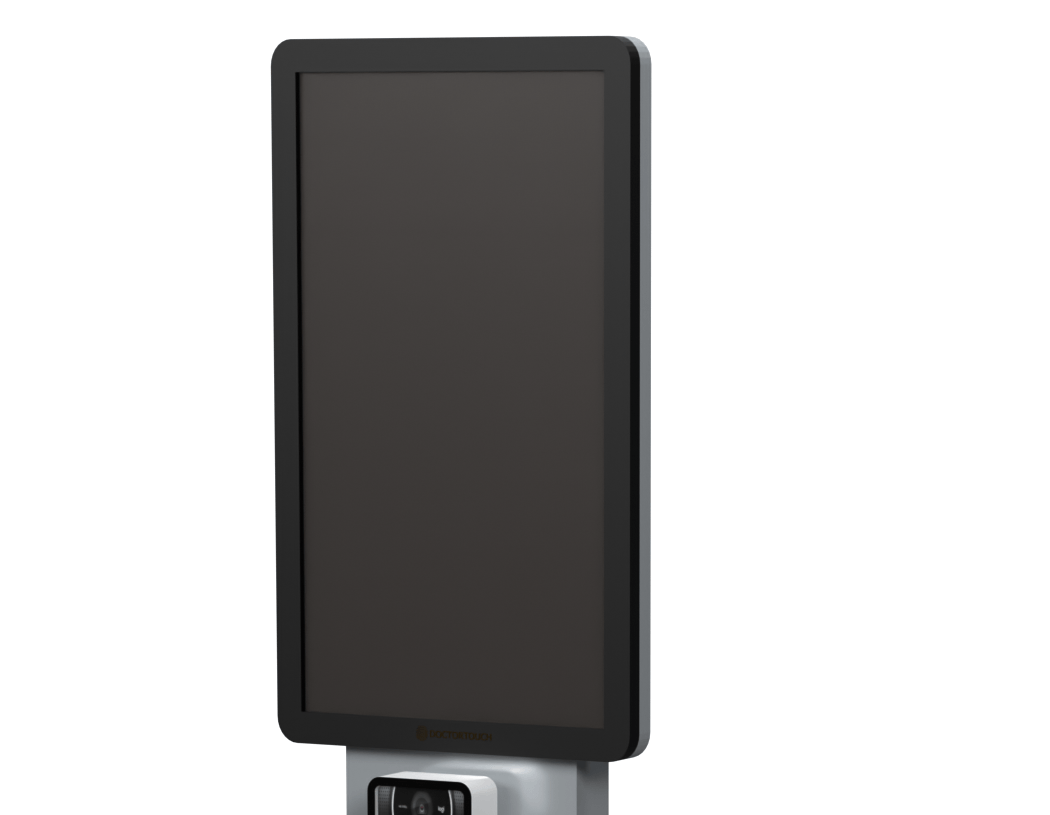

Magnificent 24 / 32 inch Android tablet with Google Play Store


Our telehealth touchscreens with bluetooth are the largest & tallest in the industry

Capturing In Full HD or 4K

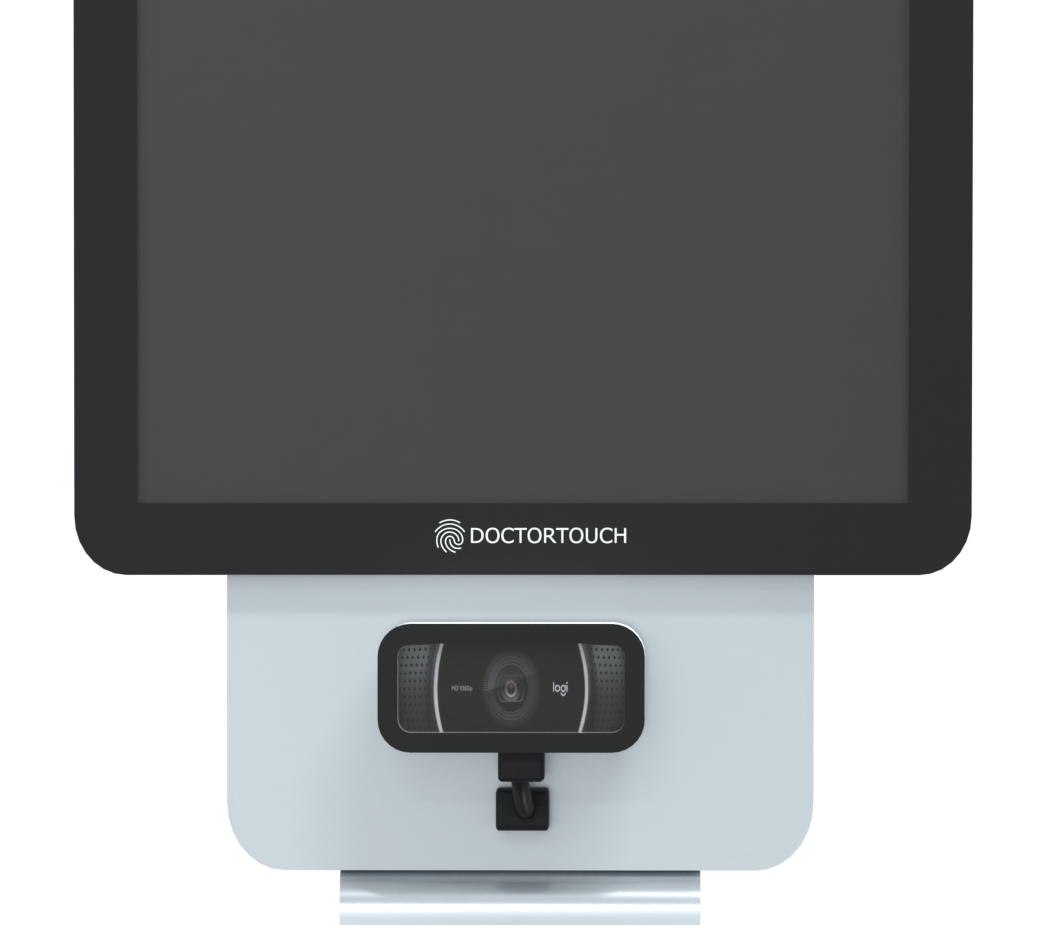

Full HD 1080p or 4K Ultra HD 2160p webcam


Securely encased & mounted at eye-level.


The flexible webcam can be rotated from landscape to portrait view.


Introducing AI Face

& Motion Tracking

AI Feature Unveiling In Summer 2024

Enhancing The Sound Experience

Crystal clear voice experience ensuring everyone is heard

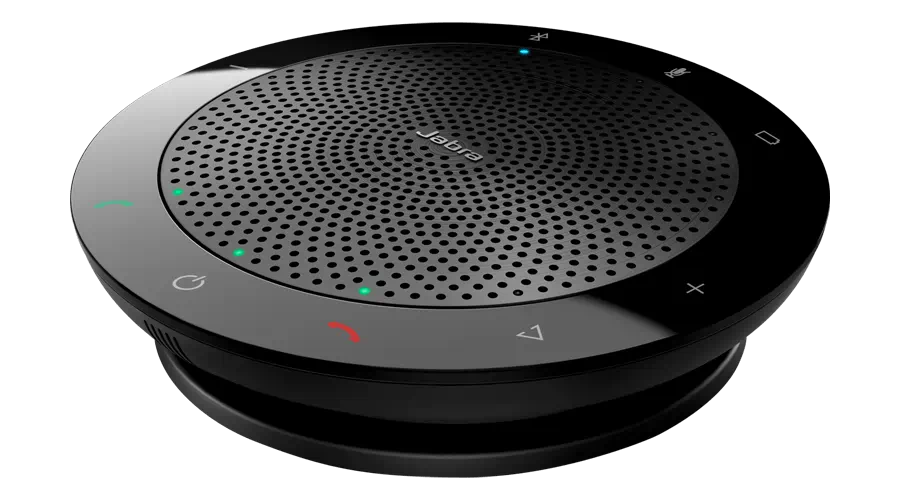

Superior voice conferencing with our built-in speakerphone


  • Audio

    Peak output power

    10 watt

    Microphone type

    Omni-directional

    Signal to noise ratio (SNR)

    +70 dB

    Speaker sensitivity

    Output sensitivity in Max volume: 0 dB Pa/Vd

    Certifications

    Bluetooth 3.0, CE, FCC, RoHS, REACH

  • Connectivity

    Connectivity

    Micro USB for Charging

    Bluetooth® standard

    Bluetooth® 3.0

    Bluetooth range

    Up to 30 m

    Supported Bluetooth® profiles

    A2DP (v1.2), Hands-free Profile (v1.6), Headset Profile (v1.2), AGHFP (v1.6)

    USB BT audio device/HID dongle. Bluetooth® 3.0)

  • Battery

    Talk-time

    Up to 15 hours

    Standby time

    Over 200 days with Automatic power off feature

    Charging time

    Approximately 2 hours

Backlit Keyboard With Hand Sensors

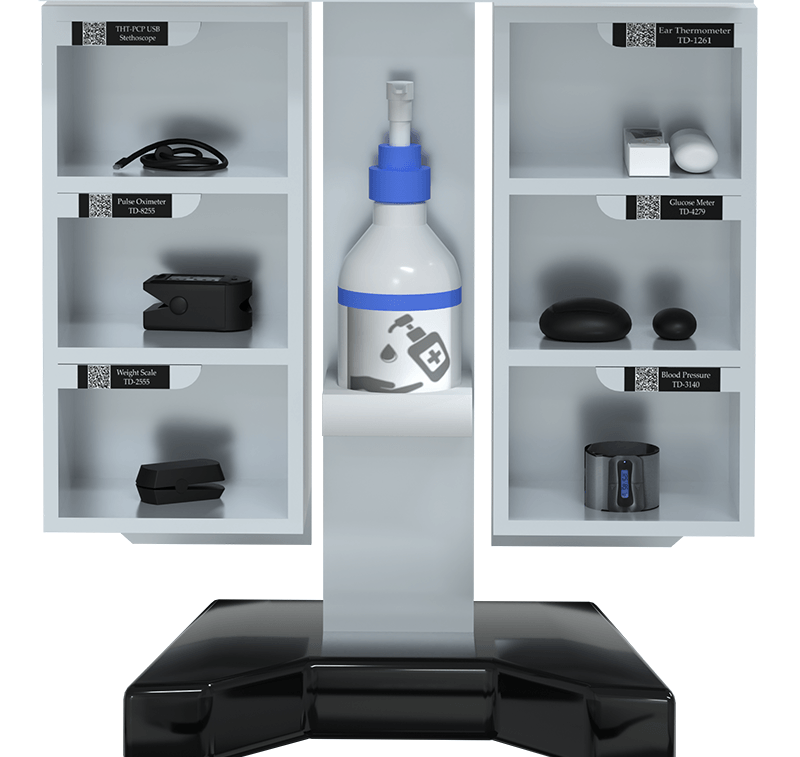

Secure storage, door and lock


Up to 7 spacious slots for securing remote devices and a sanitizer.


Both columns have removable doors which can be refitted & locked with a master key.

Base built with 4 sturdy wheels for complete mobility


Up to 7 spacious slots for securing remote devices and sanitizer.


Both columns have removable doors which can be refitted & locked with a master key.

Built with 4 sturdy wheels for complete mobility

Go Mobile & Outdoors


Stay Powered


Go mobile for days

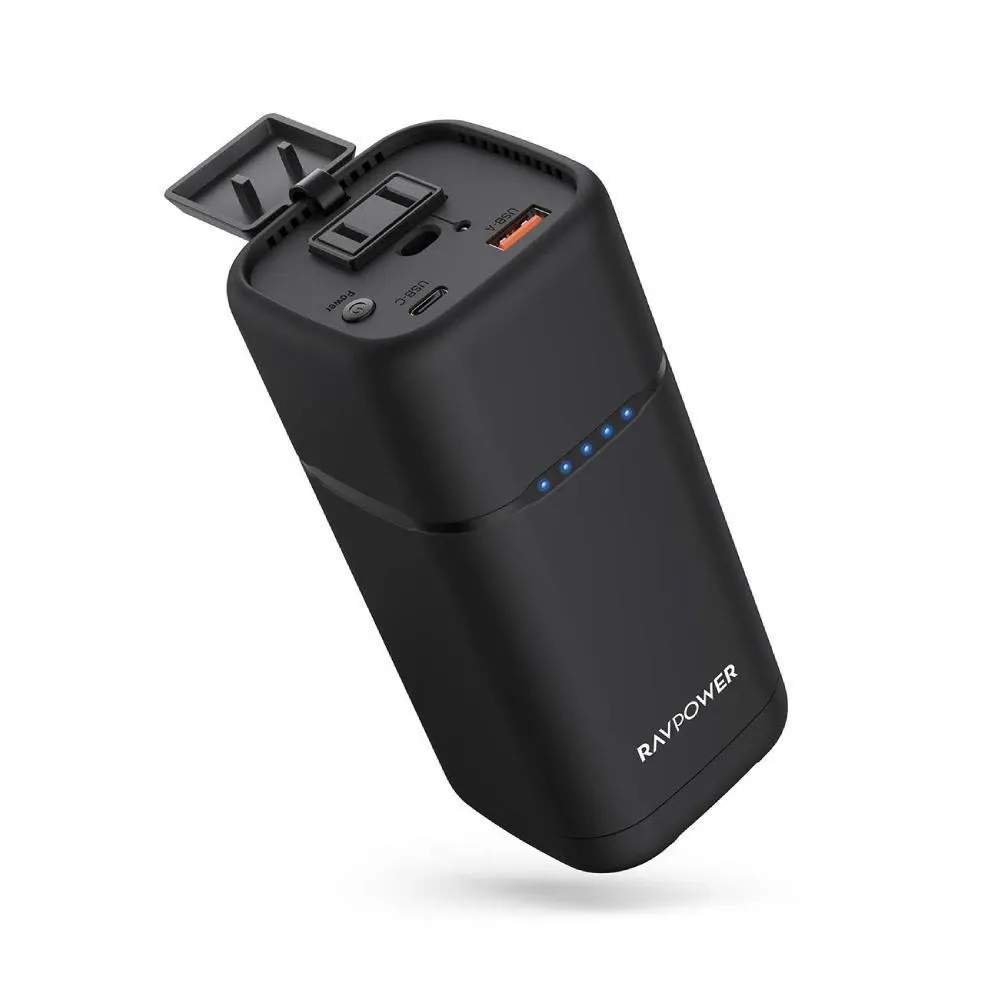

Stay powered with safe & certified portable mini chargers

Available in US, CAN & EU

Available in Asia only

Safety Ratings

  • UL Marking

    Approved by the US Occupational Health & Safety to perform safety testing. Over 22 billion products bear the UL insignia making it one of the most widely accepted safety certifications today.

  • CE Marking

    Approved for sale in the EU and European Economic Area (EEA). CE Marked products must pass the highest health, safety and environmental standards to be sold on the continent.

  • RoHS

    The certification is focused on limiting the use of hazardous materials in electronics manufacturing. It has helped reduced the amounts of heavy metals found in electronics.

Remote Patient Monitoring Devices

Devices connect via bluetooth & transmit vital measurements


The process allows providers to view patient vitals during a virtual consult. Devices include bmi/weighing scales, blood pressure cuffs, stethoscopes, glucose meters, otoscopes, pulse oximeters and more.

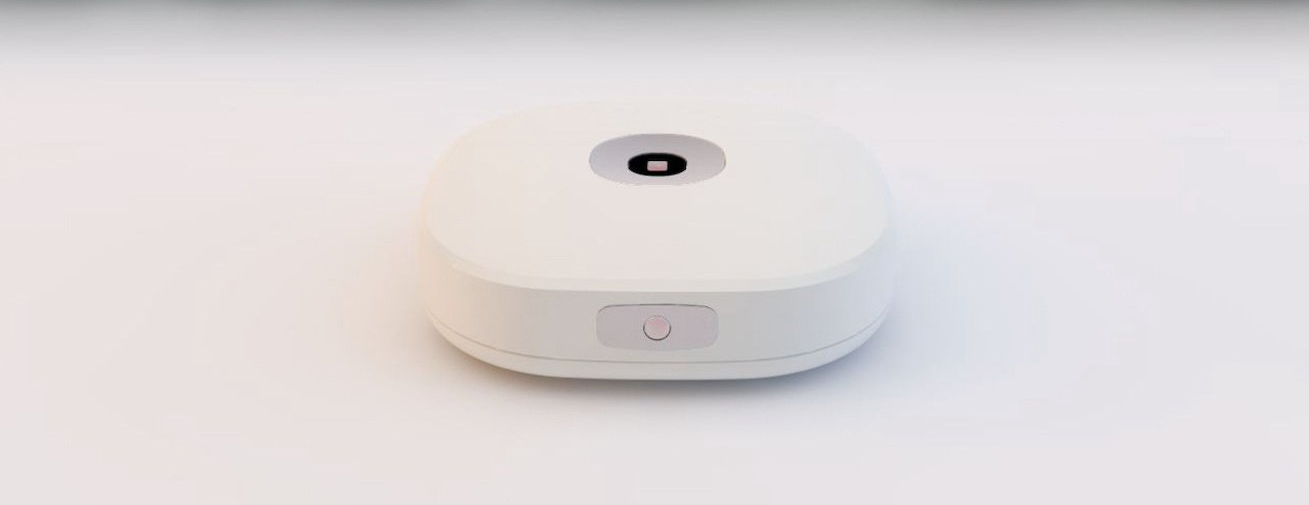

Smart Monitoring Device

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

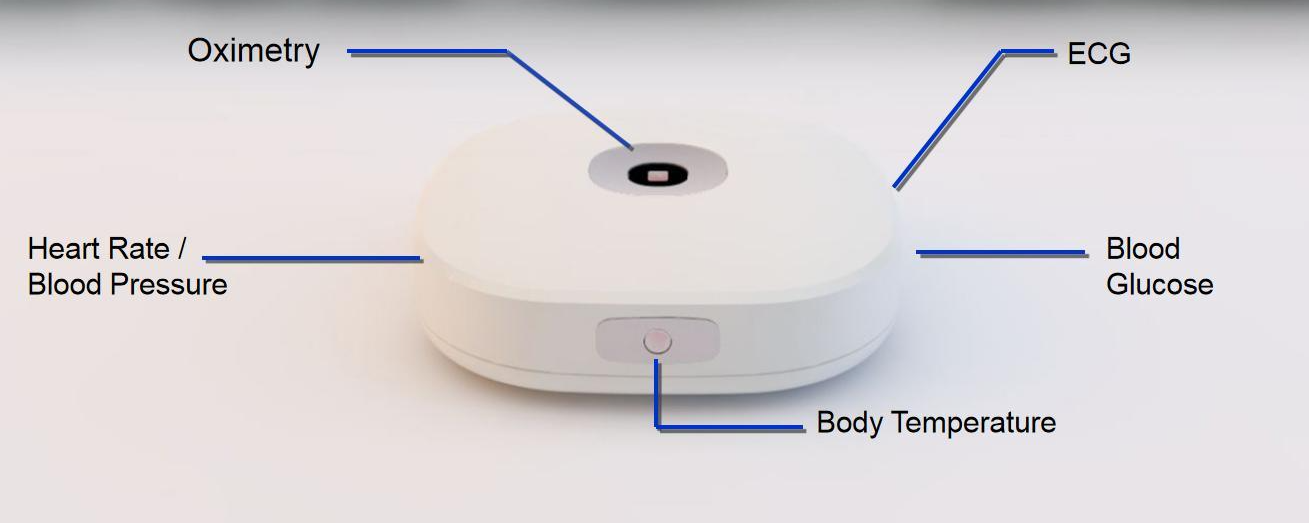

Monitor Vitals With 1 Device

  • Heart Rate
  • Oximetry
  • Body Temperature
  • Lung Functions
  • Blood Pressure
  • ECG/EKG

Watch R2-DT In Action

Kiosk Specs

  • Display

    24 Inch Touchscreen

    1920 X 1080 Resolution

    10-Point Capacitive Touch



  • CPU / OS & Hardware

    Quad Core

    RAM 2 GB

    ROM 16 GB

    Android 9.0

    Bluetooth 4.0

    4 USB ports

  • Full HD / 4K Webcams

    Full HD 1080p


    Max Resolution: 1080p/30 fps - 720p/ 60 fps

    Focus type: Autofocus

    Lens type: Glass

    Diagonal field of view (dFoV): 78°


    4K Ultra HD 2160p


    Multiple resolutions


    4K/30fps (up to 4096 x 2160 pixels)

    1080p/30 or 60 fps (up to 1920 x 1080 pixels)

    720p/30, 60, or 90 fps (up to 1280 x 720 pixels)


    Focus type: autofocus


    Lens type: glass


    Diagonal field of view (dFoV): 90°/78°/65°


    Digital zoom: 5x


    Rightlight™ 3 with HDR for clear image in various lighting environments ranging from low light to direct sunlight.


    Image controls with optional Camera Settings application for control of pan, tilt, and zoom


  • Speaker & Microphone

    Peak output power

    10 watt

    Microphone type

    Omni-directional

    Signal to noise ratio (SNR)

    +70 dB

    Speaker sensitivity

    Output sensitivity in Max volume: 0 dB Pa/Vd

    Certifications

    Bluetooth 3.0, CE, FCC, RoHS, REACH

  • General

    Kiosk Height: 1684 mm (5 foot 5 inches)

    Kiosk weight: 50 kg

    Height adjustable: Yes (Manual)

    Material: Mild Steel

    Available Colors: Space Grey / Darth Black

Logistics Partners

Lead Time 30 Days

Air Freight In 5 Days

Designed & manufactured by

Distributed & powered by

Secure your workplace & community today.

As we transition towards endemicity, safety comes first.
